Drug Delivery Devices
Terumo’s Immucise™ Intradermal Injection System is designed to deliver vaccines and other approved drugs to the dermal layer of the skin for improved immune response in comparison to intramuscular or subcutaneous injections1 . The vertical type intradermal (ID) injection system is applied perpendicular to the skin of the deltoid region of the patient’s arm3 .
text-vertical-top
image-media-type
TBD
8jhvvdJnIns
youtube
media-bottom
true
true
tab1
Description
Product-images
Product Images
Characteristics
Characteristics
General-Specifications
Specifications
Downloads
Downloads
Related-Products
Related Products
References-Disclaimer
References
tab8
Disclaimers
pd-y-32

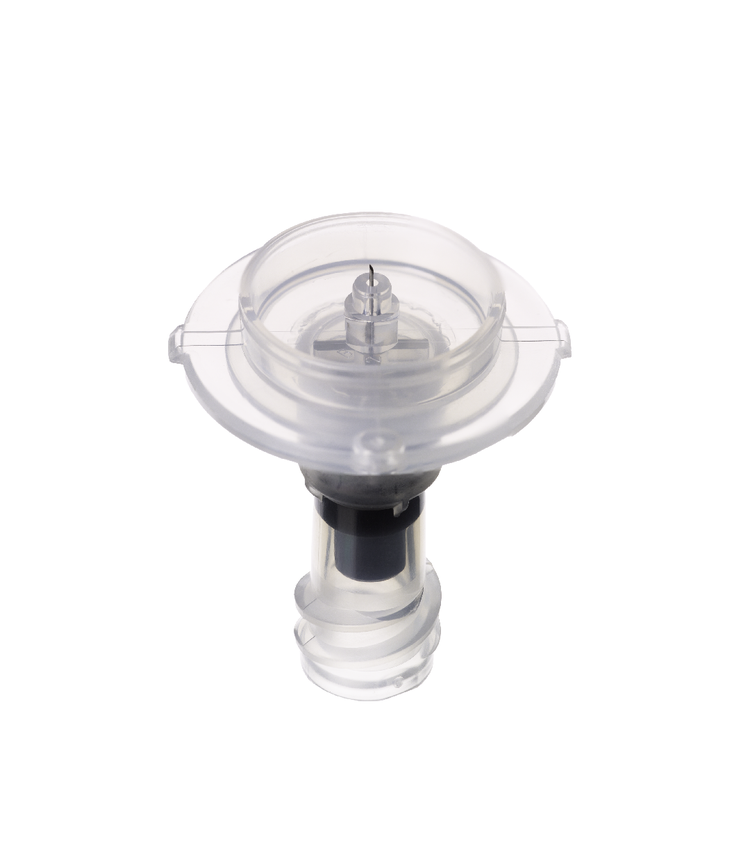

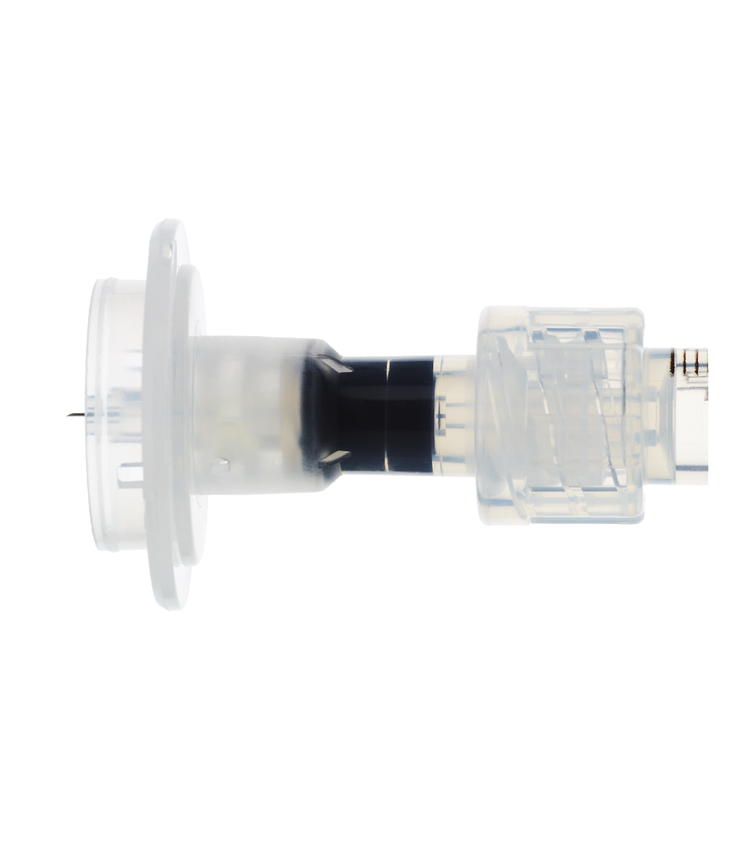

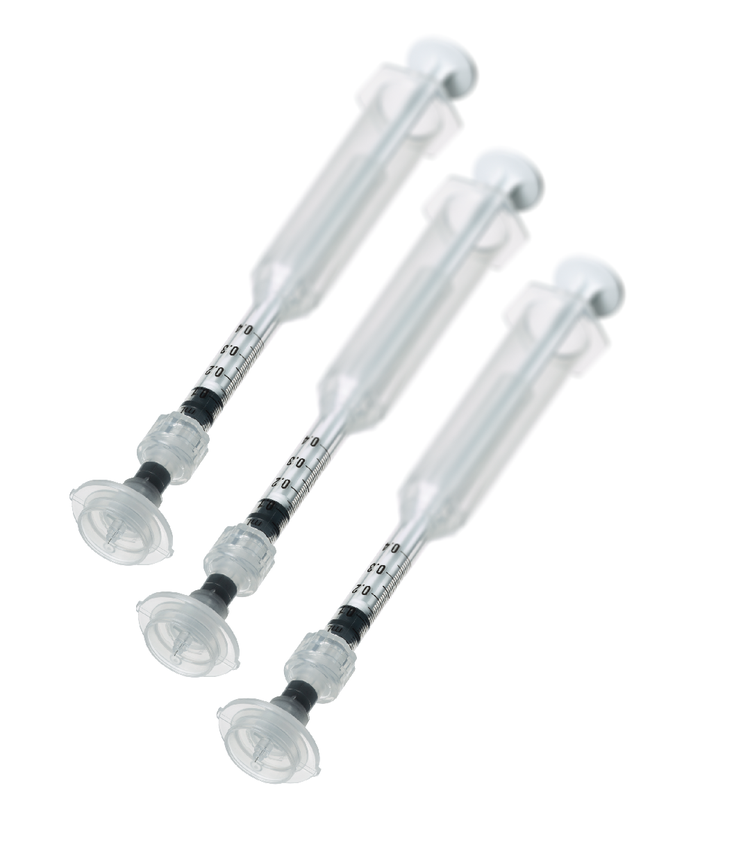

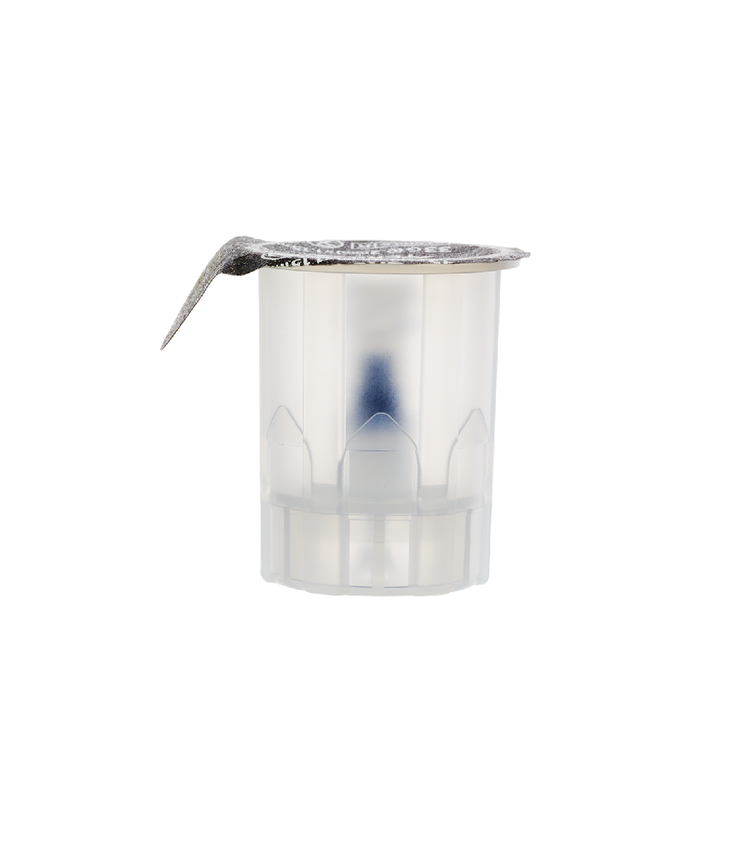

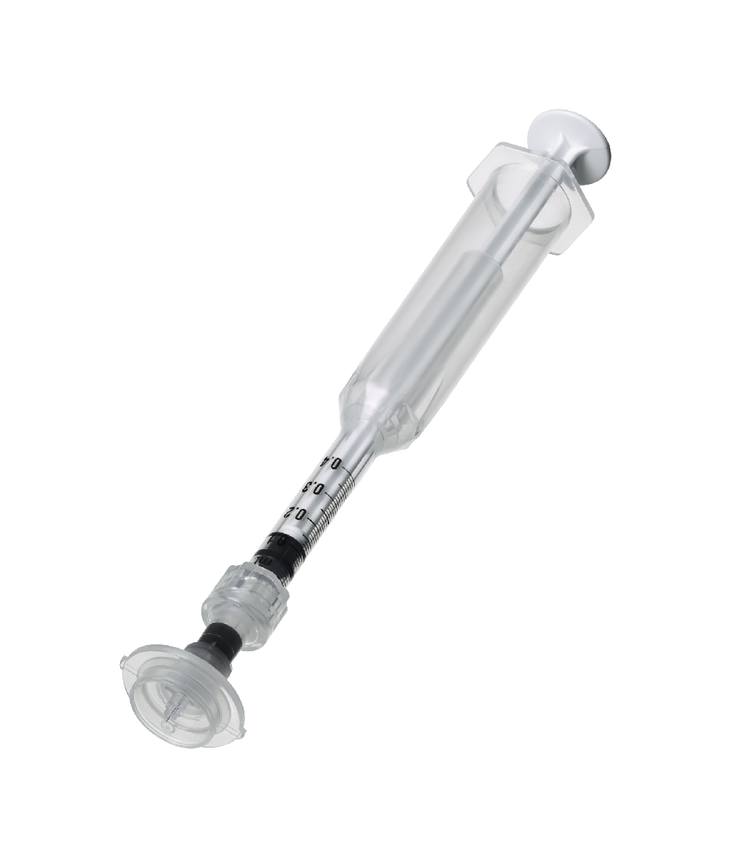

Product Images

ImmuciseIntradermal Injection System

grid-texts-70
media-top
true
pd-y-32
pd-y-64
Characteristics

Immucise™ Intradermal Injection System

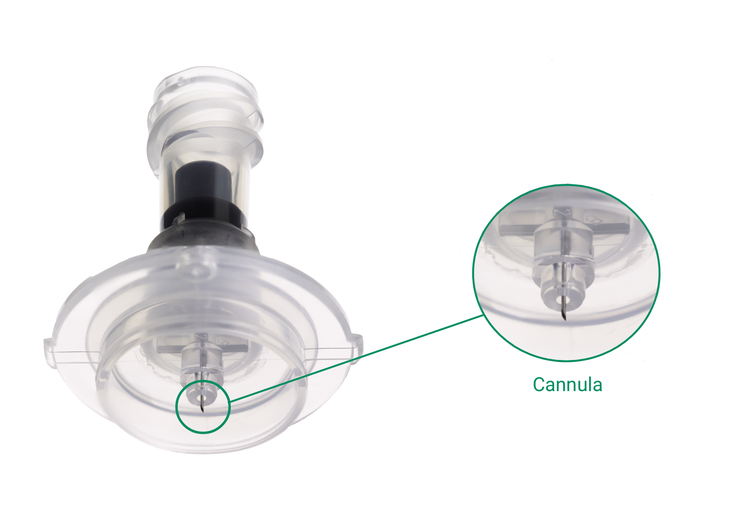

Immucise™ Intradermal Injection System’s design is characterized by its needle of the proper size to retain the needle tip in the dermal layer of the skin. The limiter ring guides the needle for perpendicular insertion into the patient’s deltoid region of the arm4 . The flange is designed to support proper pressure against the skin3 . The Immucise™ Intradermal Injection System is indicated for intradermal injections of FDA approved drugs. The system is to be used in the deltoid region for infants aged two months (excluding low birth weight and/or preterm birth) to adults.
grid-texts-70
media-top
true

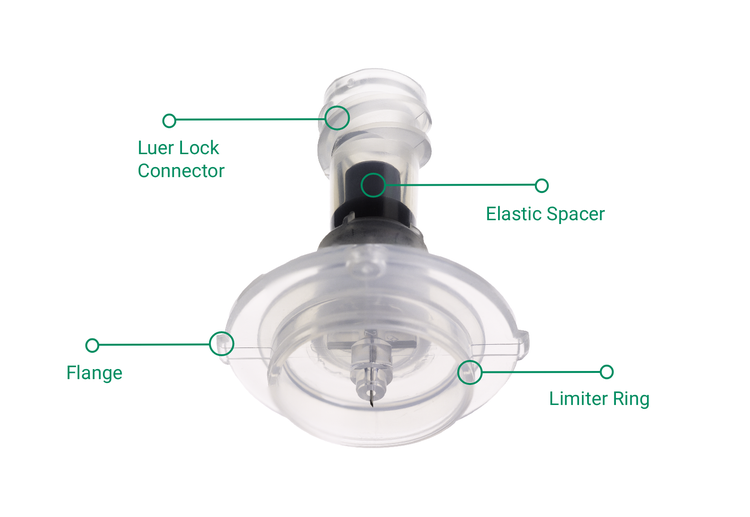

Specialized Needle for Intradermal Injections
  • Luer lock connection
  • Dead volume in needle < 8 µL 2
  • Limiter ring guides the needle for perpendicular insertion into the patient’s deltoid region of the arm4
  • The flange is designed to support proper pressure against the skin3
normal
Immucise™ Features for Injection to the Skin
  • Stainless steel needle 33G (0.2 mm Outer Diameter)
  • Exposed needle length 1.15 mm
  • Needle bevel 0.6 mm
reverse
Current Regulatory Status
  • CE Marking (EU)
  • 510 (k) Clearance and Device Listing (United States)
  • PMDA Registration (Japan)
normal
pd-y-64

General Specifications

Specifications for Immucise™ Intradermal Injection System

Terumo’s Immucise™ Intradermal Injection System is designed to deliver vaccines and other approved drugs to the dermal layer of the skin.
grid-texts-70
media-top
true
pd-y-64
Downloads

Immucise™ Intradermal Injection System Information

media-top
true

References

1. Intradermal Delivery of Vaccines, A review of the literature and the potential for development for use in low- and middle-income countries, August 27, 2009

2. Internal Company data

3. Shimizu, Sakiko et al. “Performance and usability evaluation of novel intradermal injection device Immucise™ and reanalysis of intradermal administration trials of influenza vaccine for the elderly.” Vaccine vol. 40,6 (2022): 873-879

4. Traditional 510(k) – Immucise Intradermal Injection System Section 11: Device Description

neutrals-100

Public Studies

1. Sakiko Shimizu, Ryo Tanaka, Eriko Itoh, Minami Maekawa-Matsuura, Yoichiro Iwase, Performance and usability evaluation of novel intradermal injection device Immucise™ and reanalysis of intradermal administration trials of influenza vaccine for the elderly, Vaccine, Volume 40, Issue 6, 7 February 2022, Pages 873-879 https://www.sciencedirect.com/science/article/pii/S0264410X21016698?via%3Dihub_

2. Ryo Arakane, Hitomi Nakatani, Emi Fujisaki, Akiko Takahama, Katsuyasu Ishida, Michiharu Yoshiike, Tetsuo Nakayama, Fumih iko Takeshita, Immunogenicity and safety of the new intradermal influenza vaccine in adults and elderly: A randomized phase 1/2 clinical trial, Vaccine, Volume 33, Issue 46, 17 November 2015, Pages 6340-6350, https://www.sciencedirect.com/science/article/pii/S0264410X15012566?via%3Dihub

neutrals-100
pd-y-64

Disclosures

This intradermal injection system is manufactured for clinical trials and/or studies of specific pharmaceutical and/or medicinal products only. Its specifications and/or images may be changed without notice, even if the device has been approved and/or registered in specific countries and/or regions. Notwithstanding any existing approval or registration, this device may not be available in all geographic regions. For further detail please refer to instruction for use or check with contact person in Terumo Corporation.

The contents herein may contain information which is protected by intellectual property rights owned by Terumo Corporation. Any use of the information contained herein (including, but not limited to, total or partial reproduction, communication or distribution in any form) by entities other than the designated entities is prohibited.
