pd-y-64
Infusion Sets
Surflo™ Winged Infusion Set with Surshield™ Needle Protection
Surflo™ Winged Infusion Sets with Needle Protection (Surshield™) minimize the risk of accidental needle stick injuries. Once the Surshield™ needle protection feature is activated, the needle is permanently covered. Surflo™ Winged Infusion Sets with Safety Butterfly Needle, offered by Terumo Medical Care Solutions – Pharmaceutical, provide a reliable infusion solution.
text-vertical-top
image-media-type
TBD
8jhvvdJnIns
youtube
media-right
true
true
tab1
Description
Product-images
Product Images
Characteristics
Characteristics
General-Specifications
Specifications
Downloads
Downloads
Related-Products
Related Products
References-Disclaimer
References
pd-y-32
Product Images

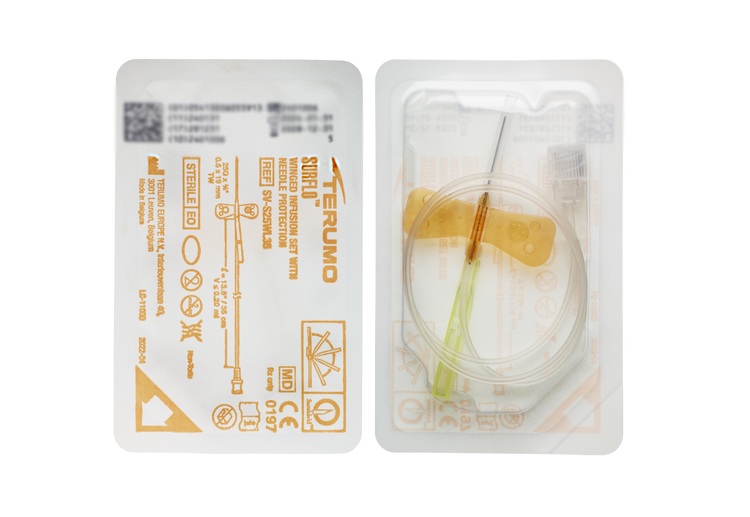

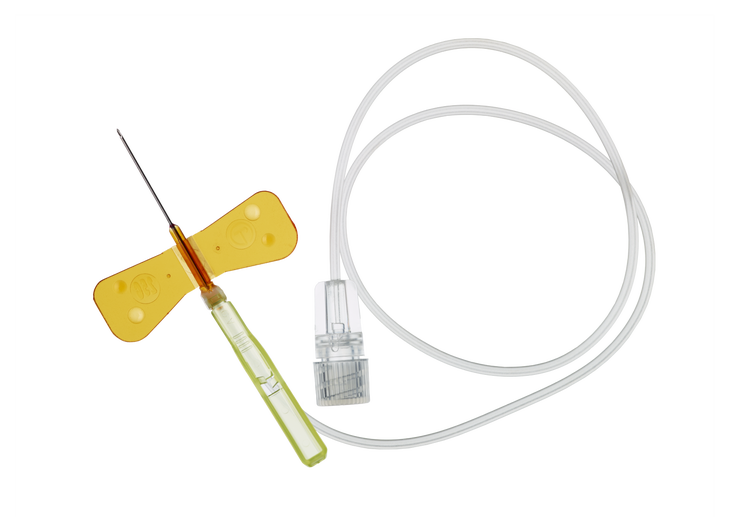

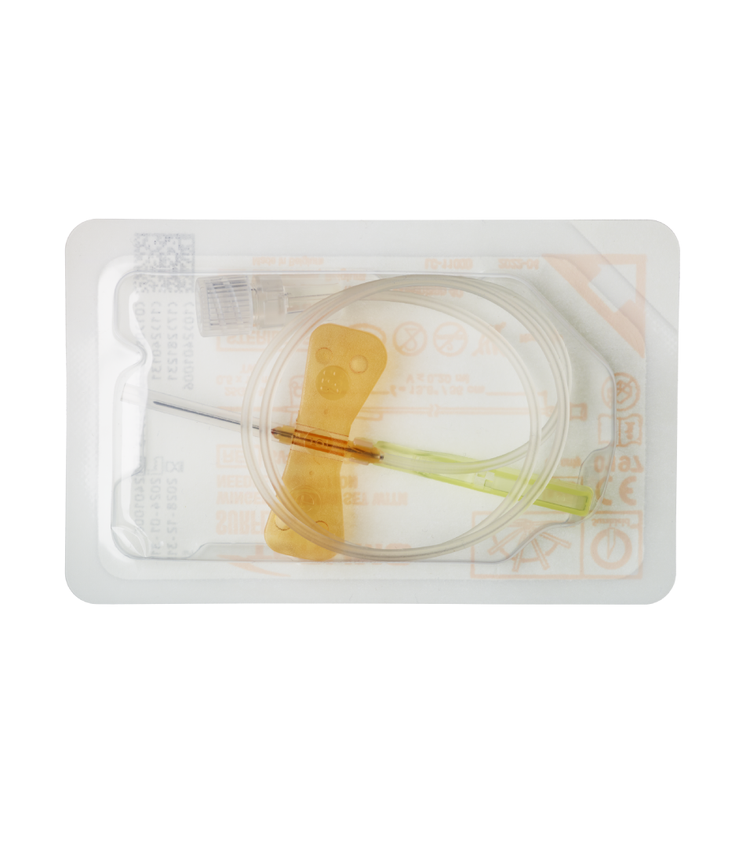

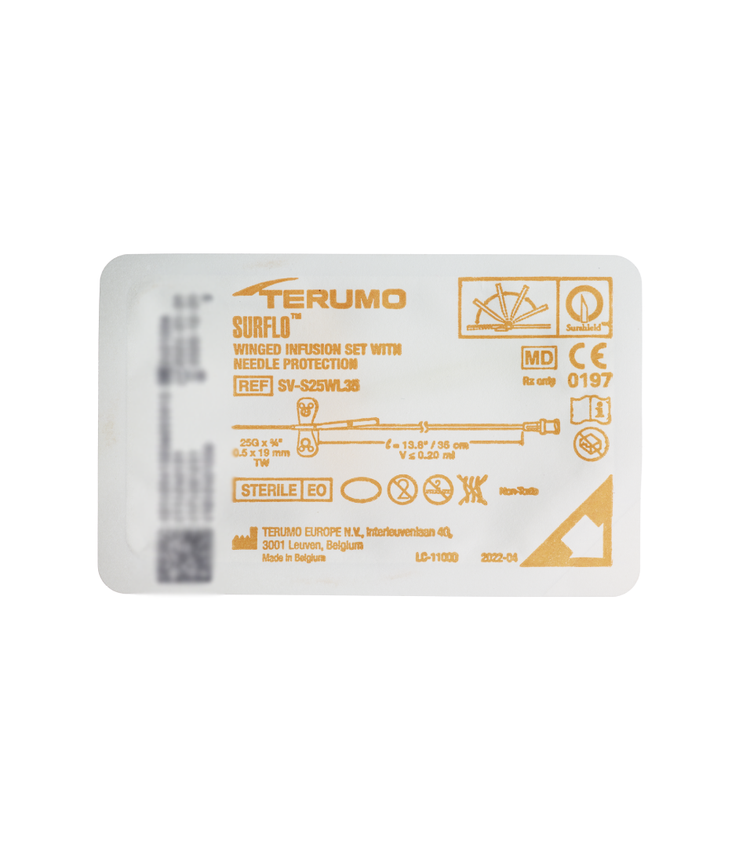

Surflo™ Winged Infusion Set with Needle Protection (SurShield™) Images
true
pd-y-32
variation-2-carousel
no-border
true
true
variation-2-carousel
TBD
variation-2-carousel
TBD
variation-2-carousel
TBD
pd-y-64
Characteristics
Surflo™ Winged Infusion Set with Surshield™ Needle Protection
Integrating the best of our design solutions such as color-coded wings, Surflo™ Winged Infusion Sets with Needle Protection (Surshield™) minimize the risk of accidental needle stick, combined with Terumo's T-Sharp™ lancet technology. We offer the quality and supply reliability that drug developers need to meet parenteral delivery challenges and product commercialization goals.
true
Winged Infusion Sets Created with Patient Comfort in Mind
- Flexible tubing, resistant to kinking to encourage a consistent flow
- Slightly angled wings (<3° rel. to cannula) for less pressure on the blood vessel when puncturing
- Siliconization (lubricant treatment) on cannula
- Surshield™ Needle protection - minimizes the risk of accidental needle stick injuries
- Color-coded (ISO) wings for easy needle gauge identification
- Microbore tubing1 for a reduced dead space volume
- Optional built-in filter (20 micron) to prevent foreign particles from being injected into the vein
normal
Engineered for automated manufacturing environments
- Sets configured for efficient packaging and assembly
reverse
Designed for world-wide compliance and global supply chains
- Tubing and wings do not contain natural rubber latex components, and were not made with di(2-ethylhexyl) phthalate (DEHP)
- Sterility Assurance Level (SAL) at least 10-6 (EN 556-1)
- In compliance with applicable ISO standards and Pharmacopoeia
- Single-use disposable winged infusion set
- Proven track record of delivering quality and reliability as a globally operating company
normal
pd-y-64
pd-y-64
Needle Protection Activation
Preposition the needle over the protector
Keep protector in position while withdrawing
Press the needle and the protector together between thumb and index finger until the cover snaps over the needle
pd-y-64
pd-y-64
General Specifications
Specifications for Surflo™ Winged Infusion Sets with Surshield™ Needle Protection
Surflo™ Winged Infusion Sets with Filter and Needle Protection (Surshield™) are intended to access the vascular system, for intravenous (IV) administration of fluids using a syringe or Luer adapter or another compatible/appropriate device.
true
* Only applicable to item codes SV-S23FL35 and SV-S25FL35
neutrals-100
pd-y-64
pd-y-64
Global Solutions for Infusion Sets
Surflo™ Winged Infusion Set with Needle Protection (Surshield™) solutions are available to drug product manufacturers globally. For more information about product availability, specifications, and applicable standards, download our data sheet.
Please note that some products may not be available in all regions, reach out to your local Terumo Pharmaceutical Solutions Pharmaceutical Contact for details. All brand names are trademarks or registered trademarks owned by TERUMO CORPORATION, its affiliates, or unrelated third parties.
Contact Us
Contact Us
button psd-primary
text-vertical-center
image-media-type
media-right
true
pd-y-64
pd-y-64
References
1. Microbore tubing is only available for specific item codes (WL and FL item codes). All other item codes have a standard bore tubing.
neutrals-100
pd-y-64
pd-y-32
Related Products
2
neutrals-100
variation-1-carousel
true
variation-1-carousel
TBD
Surflo™ Winged Infusion Set
pd-y-64
Didn't find what you were looking for?
neutrals-100
View our Products in our Product Index
View our Products in our Product Index
psdPrimary
pd-y-64
This product is also available for healthcare professionals.
We’re here to connect you with the right team.
Surflo™ Winged Infusion Sets with Needle Protection are also part of the Terumo Hospital Care Solutions (HCS) portfolio.
Surflo™ Winged Infusion Sets with Needle Protection are also part of the Terumo Hospital Care Solutions (HCS) portfolio.
Visit Terumo HCS
Visit Terumo HCS
button psd-primary
image-media-type
media-left
true
pd-y-64
pd-y-64
Contact
Connect with Our Experts for Tailored Support
We are here to help. For more information about our Surflo™ Winged Infusion Sets with Needle Protection product availability, specifications, and applicable standards, download our data sheet or contact your Terumo Pharmaceutical Solutions representative today.
