Injection Needles
The Terumo Injection Filter Needle is part of the Terumo Medical Care Solutions - Pharmaceutical’s needle portfolio, indicated for hypodermic and intravitreal injections. Developed as part of Terumo’s INFINO development program for those working to improve safety, precision and patient experience when injecting into sensitive areas such as the vitreous, Terumo’s Injection Filter Needle has been verified and validated for intravitreal applications. This hypodermic needle addresses the needs of advanced therapies for the treatment of some burdensome diseases.
text-vertical-top
image-media-type
TBD
8jhvvdJnIns
youtube
media-right
true
true
tab1
Description
Product-images
Product Images
Characteristics
Characteristics
General-Specifications
Specifications
Downloads
Downloads
Related-Products
Related Products
References-Disclaimer
References
tab8
Disclaimers
pd-y-32
Designed to address unmet needs
4
neutrals-100
  • Growing rates of eye diseases such as neovascular age-related macular degeneration (AMD), diabetic retinopathy and retinal vein occlusions (RVO) are driving demand for safer injections into the vitreous body (eye)1,2.
  • Today, many injections in sensitive areas are performed using hypodermic needles that are not specifically designed or validated for these applications3.
#444B52
pd-y-32
pd-y-64
Product Images

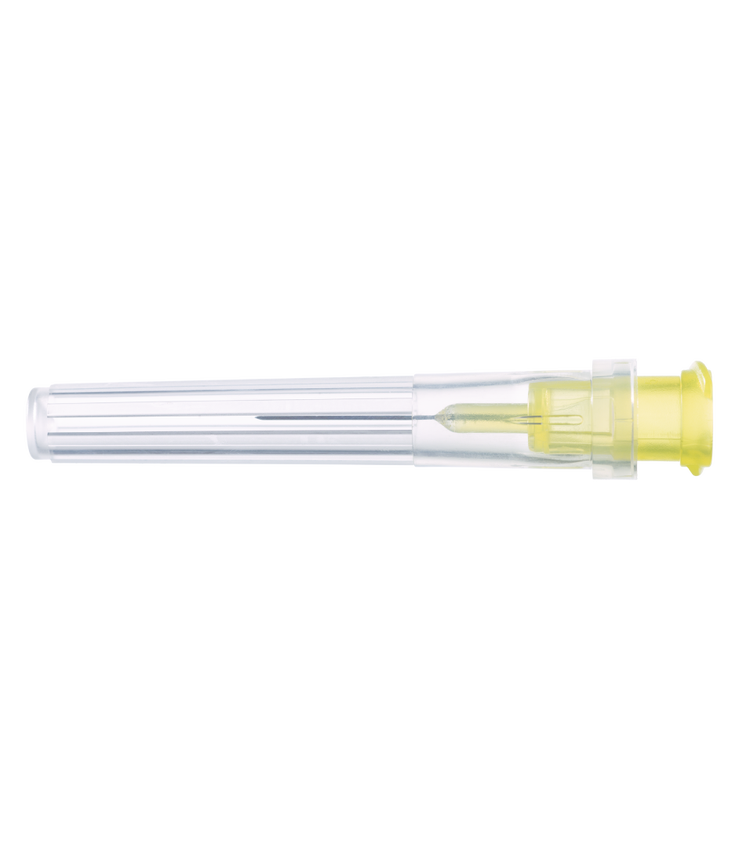

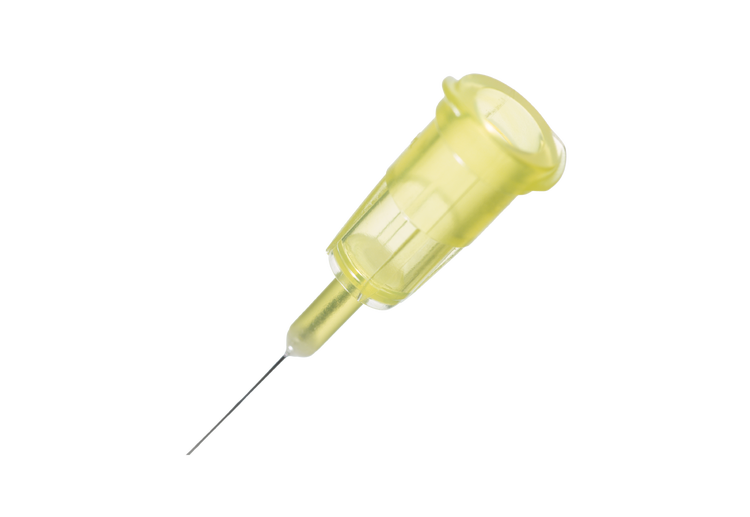

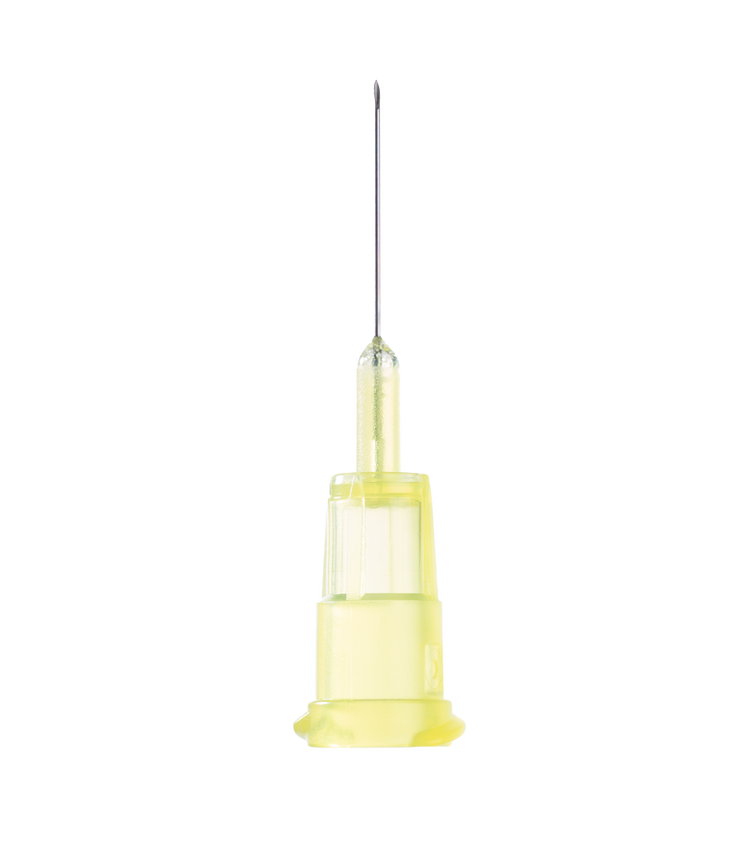

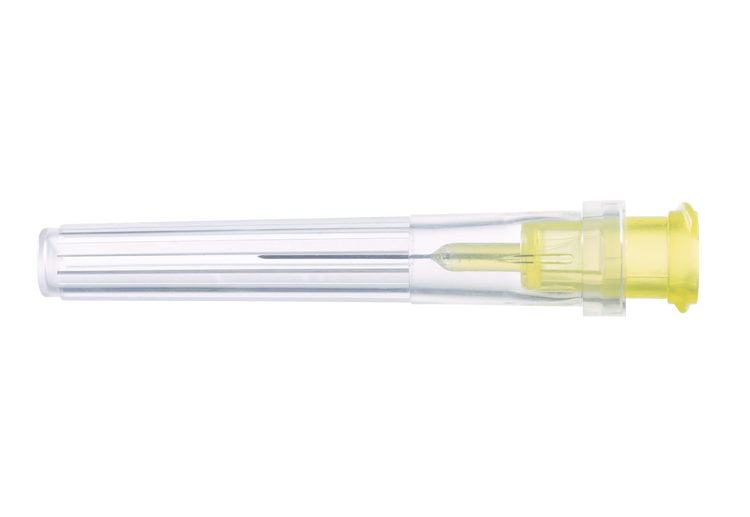

Terumo Injection Filter Needle

media-top
true
pd-y-32
pd-y-64
Characteristics

Terumo Injection Filter Needles

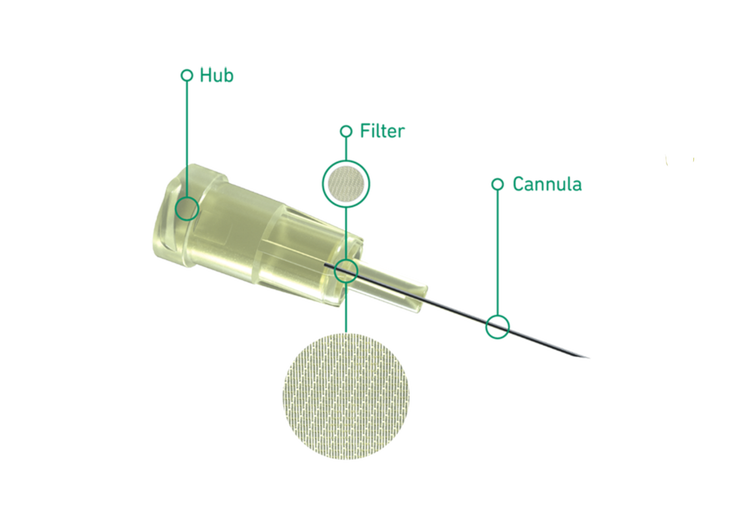

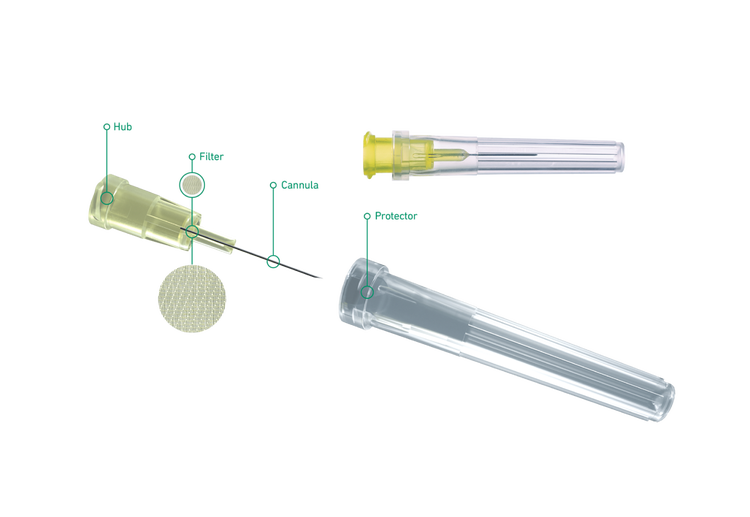

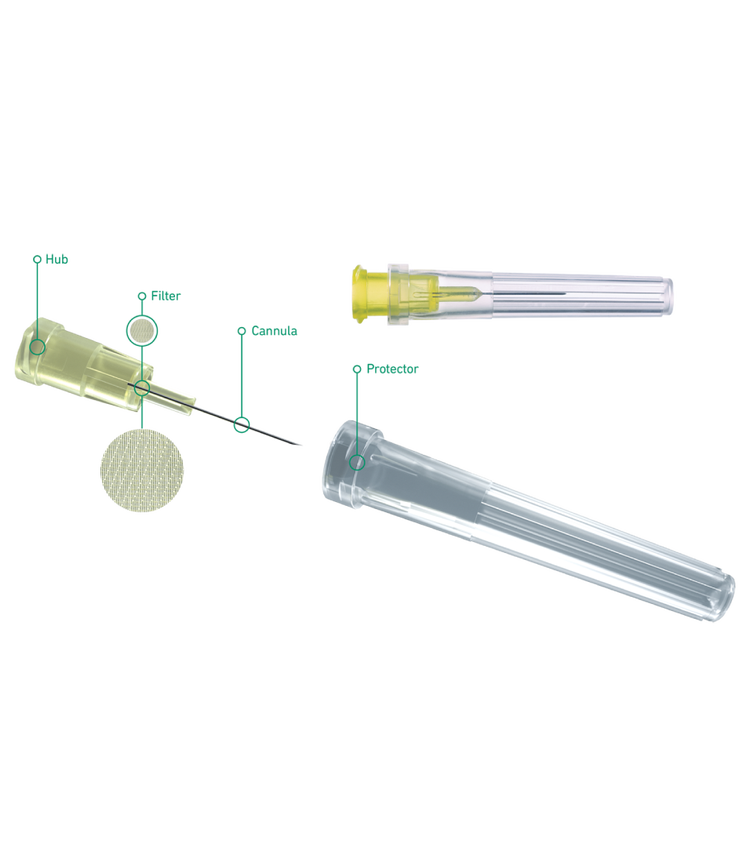

The Terumo Injection Filter Needle is indicated to inject fluids into parts of the body below the surface of the skin, including subcutaneous (SC), intramuscular (IM), and Intravenous (IV) applications as well as injections into the vitreous. The integrated 5μm polyamide mesh size filter in the hub is intended to prevent particles from being injected into the patient. The Terumo Injection Filter Needle has been subject to stringent and extensive testing to determine biological properties and filtration performance.
media-top
true
Terumo Injection Filter Needle Features
  • Integrated 5μm mesh filter
  • 30G-12mm extra-thin wall cannula

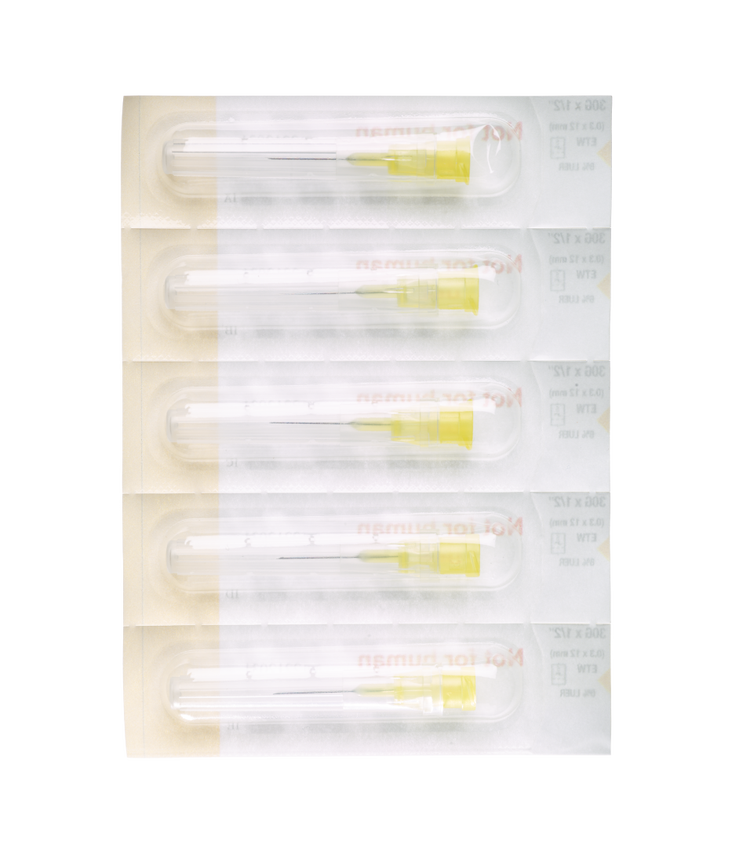

  • Soft blister packaging for aseptic presentation
  • Patented design developed as part of the Terumo INFINO development program.
normal
Terumo Injection Filter Needle Regulatory Status & Quality Details
  • CE certified: CE 0197
  • 510(k) Clearance and Device Listing (United States)
  • Health Canada Registration (Canada)
  • PMDA Registration (Japan)*
  • ARTG Conformity Assessment (Australia)
  • Biological evaluation has been performed in accordance with EN ISO 10993-1.

* item code not registered in any other jurisdiction.

reverse
Terumo Injection Filter Needle Particulate Levels

When tested with the light obscuration particle count method according to EP 2.9.19, USP 788 (method 1) and USP 789, the average number of sub-visible particles found in the needles does not exceed:

  • Particles ≥10 μm: Not more than 10 particles per device
  • Particles ≥25 μm: Not more than 1 particle per device
  • Particles ≥50 μm: Not more than 0 particles per device
normal
Terumo Injection Filter Needle Sterility
  • Products are supplied sterile
  • The sterile barrier system meets the requirements of EN ISO 11607-1
  • The packaging process is validated in accordance with EN ISO 11607-2
  • Needles are sterilized with Ethylene Oxide gas, in their final package
  • Ethylene oxide sterilization Sterility Assurance Level (SAL) at least 10-6
reverse
pd-y-64
General Specifications

Specifications for Terumo Injection Filter Needles

Terumo Injection Filter Needles are medical devices intended for the injection of fluids via the parenteral subcutaneous (SC), intramuscular (IM) and intravenous (IV) routes. The particles in the fluid to be injected may be of intrinsic origin, such as precipitates, or of extrinsic origin, such as foreign matters introduced during the manufacturing process during fill and finish4,5,6 .
media-top
true
pd-y-64
pd-y-64

Global Solutions for Injection Filter Needles

The Injection Filter Needles are available to drug product manufacturers globally.

For more information about product availability, specifications, and applicable standards, download our data sheet.

Please note that some products may not be available in all regions, reach out to your local Terumo Pharmaceutical Solutions Pharmaceutical Contact for details. All brand names are trademarks or registered trademarks owned by TERUMO CORPORATION, its affiliates, or unrelated third parties.

Contact Us
Contact Us
/content/psd-ia/en/contact
button psd-primary
text-vertical-center
image-media-type
media-right
true
pd-y-64
pd-y-64
Downloads

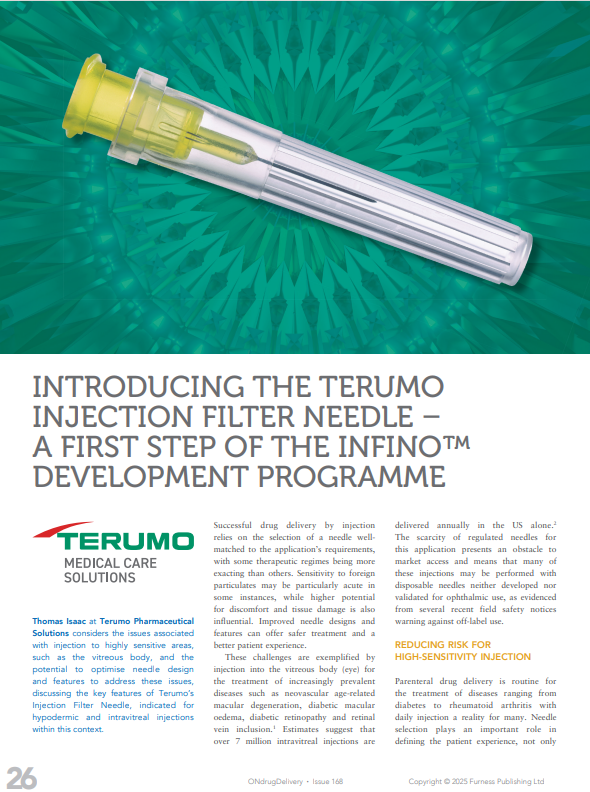

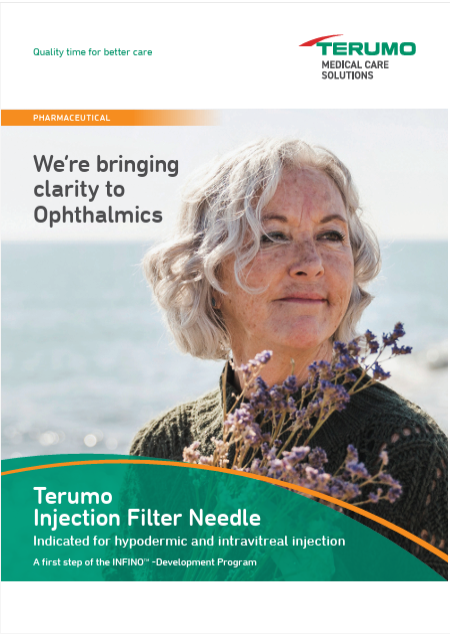

Terumo Injection Filter Needle Product Information

media-top
true
pd-y-64
pd-y-64

References

1. VEHSS Modeled Estimates for Age-Related Macular Degeneration (AMD) | Vision and Eye Health Surveillance System | CDC

2. Age-Related Macular Degeneration (AMD) Tables | National Eye Institute

3. Annersten, M., & Willman, A. (2005). Performing Subcutaneous Injections: A Literature Review

4. Langille, S. E. (2013). Particulate Matter in Injectable Drug Products. PDA Journal of Pharmaceutical Science and Technology, 67(3), 186–200. PDA Journal of Pharmaceutical Science and Technology, May 2013, 67(3), 186–200

5. Perez, M., Maiguy-Foinard, A., Barthélémy, C., Décaudin, B., & Odou, P. (2016). Particulate Matter in Injectable Drugs: Evaluation of Risks to Patients. Pharmaceutical Technology in Hospital Pharmacy, 1(2), 91–103. Pharm. Technol. Hosp. Pharm. 2016; 1(2): 91–103

6. Messick, S., Saggu, M., & Ríos Quiroz, A. (2019). Particles in Biopharmaceuticals: Causes, Characterization, and Strategy. In Biopharmaceutical Processing (Springer)

neutrals-100
pd-y-64

Terumo Injection Filter Needle Product Disclaimers

  • INFINO™ is a trademark filed by Terumo Europe N.V. for medical devices to be developed with specific features, the first example of these products is currently marketed as "Terumo Injection Filter Needle"
  • The Terumo Injection Filter Needle is a sterile medical device for single use intended to inject fluids. The indications for use are for general application – for treatment – injection of fluids into parts of the body below the surface of the skin and into the vitreous
  • In case of injection of fluids into the vitreous, the Terumo Injection Filter Needle shall be used only in combination with (pre-)filled syringes validated for intravitreal use
  • This information is intended for professionals in the pharmaceutical supply chain who are interested in primary packaging, injection components and medical devices from Terumo Pharmaceutical Solutions, for use in combination with their respective drug products (hereafter, pharmaceutical professionals). Please note that the product information contained on this data sheet is exclusively addressed to pharmaceutical professionals. This product information is not for the general public, nor is it intended to be a substitute for professional medical advice or for the care that patients receive from their healthcare professionals
  • Please note that some products may not be available in all regions, please reach out to your local Terumo Medical Care Solutions – Pharmaceutical contact for details
  • All brand names are trademarks or registered trademarks owned by TERUMO CORPORATION, its affiliates, or unrelated third parties
  • Images are for visualization purpose only
  • Always consult the product label and instructions for use for a complete overview of complications, warnings, cautions and precautions prior to actual use
