Winged Infusion Set with Needle Protection

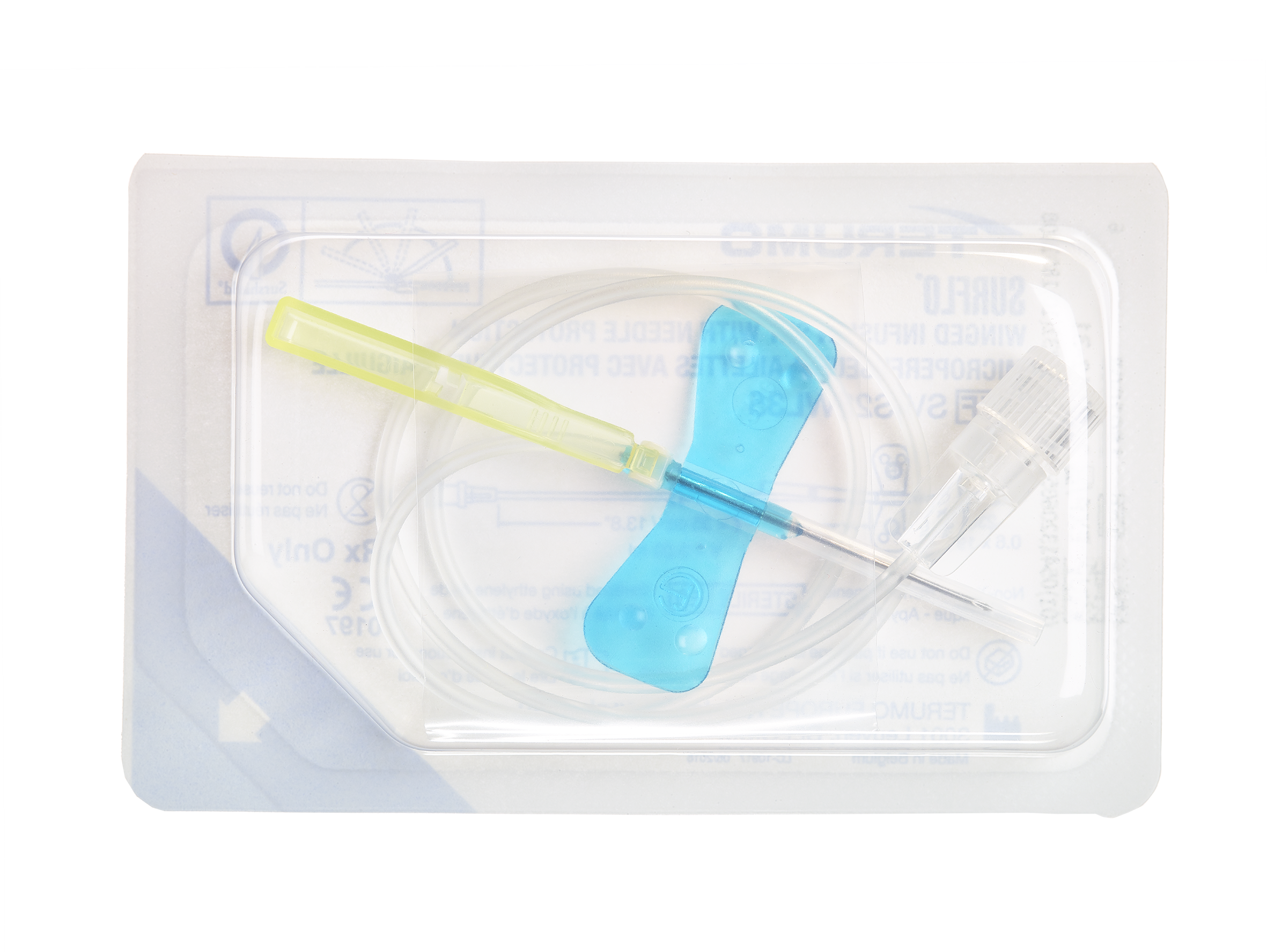

SurfloTM Winged Infusion Set with Needle Protection (SurshieldTM)
SurfloTM Winged Infusion Sets with needle protection (SurshieldTM) minimizes  the risk of accidental needle stick. Once activated, the needle is permanently covered


​​More Confident, Comfortable Infusions

Integrating the best our design solutions such as color-coded wings, SurfloTM Winged Infusion Sets with needle protection (SurshieldTM) minimizes  the risk of accidental needle stick, combined with Terumo's T-SharpTM technology.

SurfloTM Winged Infusion Sets needle protection (SurshieldTM) offer the quality and supply reliability drug developers need to meet parenteral delivery challenges and product commercialization goals.

Design elements addressing patient comfort

  • Different wall technologies1 to match your unique and individual drug need, even for fluids with a higher viscosity
  • Flexible tubing, resistant to kinking to encourage a consistent flow
  • Slightly angled wings (<3° rel. to cannula) for less pressure on the blood vessel when puncturing
  • Siliconization (lubricant treatment) on cannula
  • Needle protection (SurshieldTM) minimizes  the risk of accidental needle stick,
  • Color-coded (ISO) wings
  • Microbore tubing2 for a reduced dead space volume
  • Optional built-in filter (20 micron) to prevent foreign particles from being injected into the vein

Engineered for automated manufacturing environments
  • Sets configured for efficient packaging and assembly
Designed for world-wide compliance and global supply chains
  • Tubing and wings are not made with DEPH, no natural rubber latex components
  • Sterility Assurance Level at least 10-6 (EN 556-1)
  • In compliance with all applicable ISO  standards and Pharmacopoeia
  • Proven track record of reliable supply assured by global operating company

General specifications

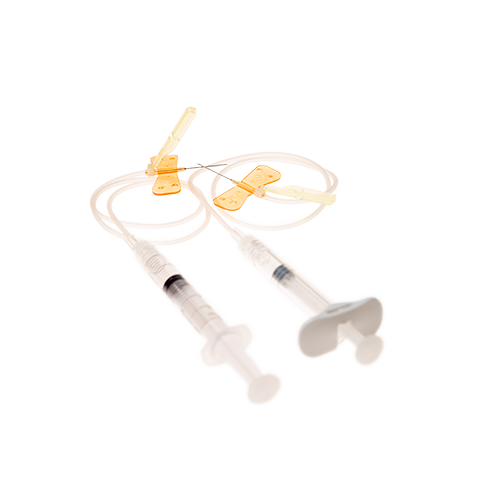

​​SurfloTM Winged Infusion Sets with (Filter and) needle protection (SurshieldTM) are intended to access the vascular system, for intrave­nous administration of fluids using a syringe or luer adapter or another compatible/appropriate device.

Specification Description
Needle PointT-SharpTM Technology
CannulasTerumo thin wall stainless steel X5CrNi 18-10
Wing hubPolyvinyl chloride not made with DEPH
TubePolyvinyl chloride
containing color
masterbatch, not made with DEPH
AdapterPMMA (PolyMethylMetAcrylaat)
Adapter capPolypropylene
Filter (20µ) *Polyamide (integrated in adapter)
Surshield protectorPolypropylene
Surshield hingeAcrylonitrile butadiene styrene copolymer
Shipping carton500/1000 pcs.
Sterilizationethylene oxide
(Sterility Assurance Level of at least 10-6)
Shelf-life5 years

*Only applicable to item codes SV-S23FL35 and SV-S25FL35

Global Solutions

SurfloTM Winged Infusion Set with Needle Protection (SurshieldTM) solutions are available to drug product manufacturers globally. For more information about product availability, specifications, and applicable standards, download our data sheet or contact your Terumo representative today.

Please note that some products may not be available in all regions, reach out to your local Terumo Medical Care Solutions - Pharmaceutical Solutions Division contact for details. All brand names are trademarks or registered trademarks owned by TERUMO CORPORATION, its affiliates, or unrelated third parties.


1 Currently only thin and regular wall are available for our winged infusion sets portfolio.

2 Microbore tubing is only available for specific item codes (WL and FL item codes). All other item codes have a standard bore tubing.
